Product Description

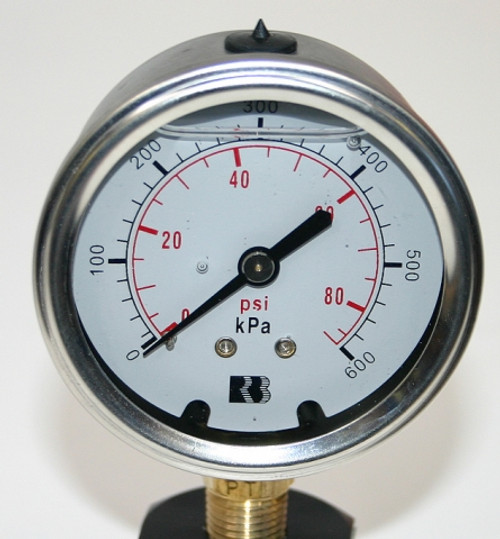

This range of liquid filled general purpose pressure gauges have proven to be reliable and efficient while still remaining at a reasonable price. With a 63mm diameter 304 stainless steel case with copper alloy internals, polycarbonate window, 1/4" male BSPT bottom mount inlet, glycerine filled with vent plug, aluminium pointer and, an accuracy of +/- 2.5 % of full scale, they are a cost effective unit. The indication dials are printed in black showing kPa and red showing psi. Reliable and cost effective pressure gauges for pressure measurement in water lines, pumps and most general applications. 0 - 250 kPa range.Case and bezel material: 304 stainless steel, liquid filled with vent plug Connection: Copper alloy Bourdon tube material: Copper alloy Working temperature: Ambient = -20~60o C, Process = +70o C Dial: Black print (kPa) red print (PSI) on white background Ranges: -100~0 kPa to dual scale 0~40000 kPa/PSI Connection: ¼" BSPT for 63 mm, 3/8" BSPT for 100 mm Surge Protection: Available on request Window: Polycarbonate Movement: Copper alloy Pointer: Aluminium black finish Accuracy: +/- 2.5% of full scale
