Product Description
The Raindial range from Irritrol is available in 6, 9 and, 12 valve configurations. Each has a 3 program capability and is supplied in a weather-proof enclosure.

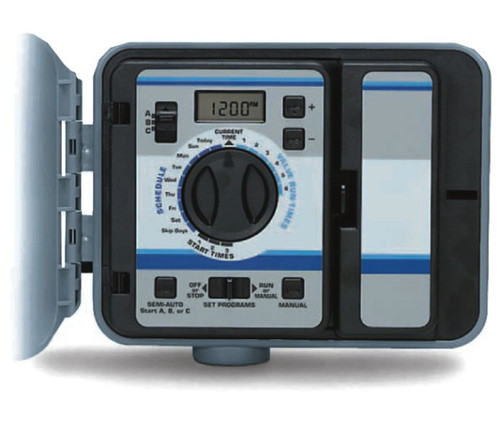

Rain Dial® Series
12 stations
Complete with internal transformer and weather-proof cabinet.
Application
This advanced-design hybrid controller provides exceptional scheduling flexibility to accommodate a wide variety of residential applications. Plus, its exclusive modular design offers convenient remote programming.
RD1200-EX-A (Suitable for 12 irrigation valves plus a master valve/pump start)
Features
Three independent programs offer concurrent operation capability
Seven-day calendar or "Skip Days" interval option from 1-15 days
Easy-to-read programming dial and large, self-prompting LCD
Automatic, semi-automatic and timed-manual operation
Modular design allows easy removal of control module without disturbing valve wiring
Self-diagnostic electronic circuit breaker identifies and overrides an electrical malfunction of a valve
Battery backup keeps accurate time and maintains program during power failure for up to 90 days
Master valve/pump start circuit
Weather-resistant plastic, locking cabinet with an internal trans- former.
Wall mount
UL and CSA Listed
Operating Specifications
Station run times: 1-59 minutes in 1-minute increments or 1-5.9 hours in .1-hour (6 min.) increments
Start times: 3 per program for up to 9 total
Watering schedule: 7-day calendar or "Skip Days" interval option from 1-15 days
Electrical Specification (Australian approval certificate)
Transformer input: 240 VAC, 50 Hz
Transformer output: 24 VAC, 1.25 amps
Maximum output per station: 24 VAC, .5 amp
Maximum total output to valves: 24 VAC, 1.0 amp (including master valve)
Battery backup: 9-volt alkaline (not included)
Dimensions: Height 197mm x Width 274mm x Depth 102mm
